Most effective harmonic mitigation up to 50th order, for both even and odd orders

THDI < 5%, adjustable

Reactive power compensation and load balancing capability

New modular concept offering optimal tailored solution to customer need

Most compact design, robust, efficient. Ecosine active sync 120Arms DPP, built with two power modules (440 × 420 × 222 mm each), suits the broadest temperature range (0…50°C full performance, up to 55°C derating)

High efficiency and low acoustic noise

Response time less than 100 microseconds

Reliable and ready to use

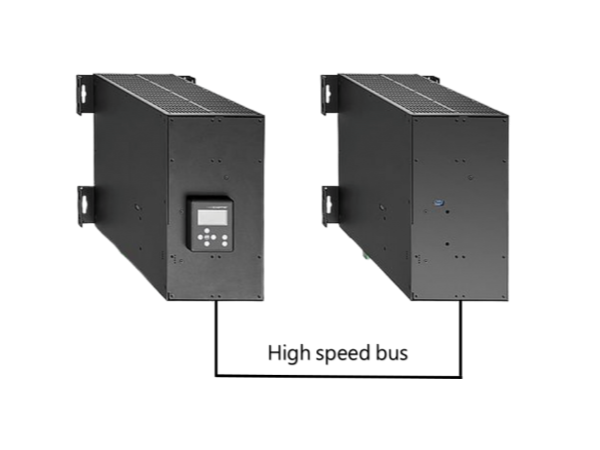

2 FN 3530 power modules connected with High Speed Bus

Only 1 current transformer and 1 display module are needed

IP 21 optional kit available

Mains frequency : 50/60Hz ± 3 Hz
Mains voltage : 380VAC ± 15% – 480VAC± 10%
Number of phases : 3-phase 4-wire
Rated phase mitigation current : 120 Arms

Flexible installation as wall mount (flat or book) or in standard cabinet with slide-in-technology
